JavaStation-NC, "Krups"

Some pictures

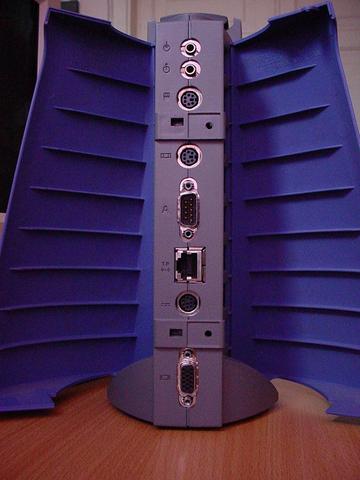

Connectors on the rear.

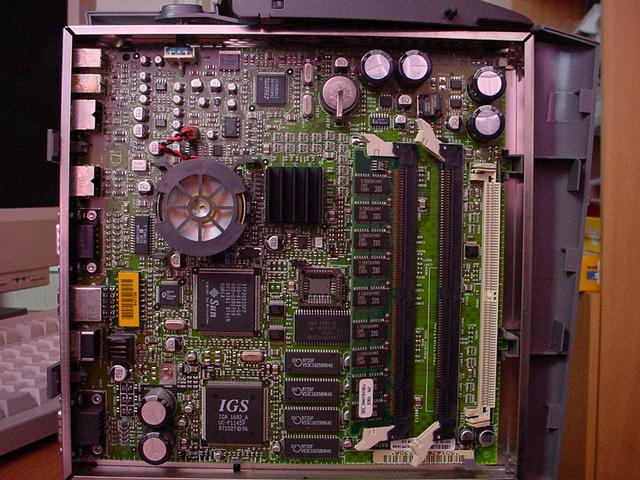

The board view and another one (more light).

Getting to the PROM prompt.

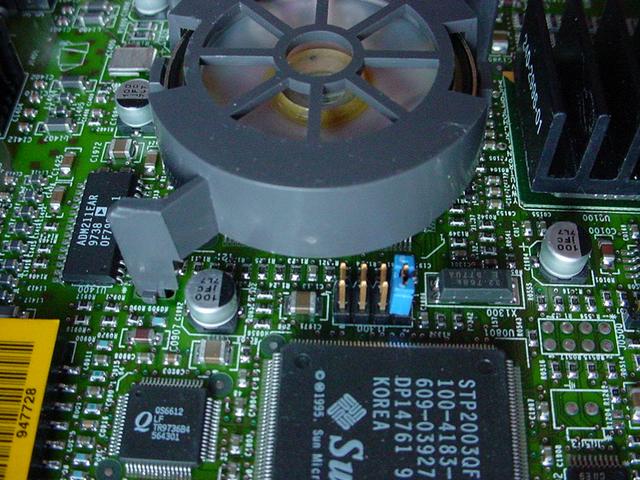

You need to set jumper J1300 1-2 to IN. Refer to Krups board diagram. You can see the a close-up of the debug jumper on this picture.

Power-on key chords

The list of chords known to PROM as obtained by inspecting chords dictionary. Hold Ctrl+Alt+key during power-up.

a - don't auto-boot, enter PROM (needs debug jumper).
b - debug net boot
d - run diagnostics (takes long time)
f - enter PROM on serial port early
h - show help on chords
n - reset NVRAM to default values
t - toogle boot-device order (try flash last)
w - show system info in banner

Flash SIMM

If you Krups came with the flash SIMM, the SIMM contains JavaOS. Krups boots off the SIMM if present by default, unless you hold Ctrl+Alt+T, toggle boot order chord during power-on. Since the flash SIMM is not yet supported you best bet is to rip it out and stow it away. PROM will fall back to net boot if SIMM is not present.

This page is maintained by Valeriy E. Ushakov
$Id: krups.html,v 1.1 2002/08/13 16:30:22 uwe Exp $
